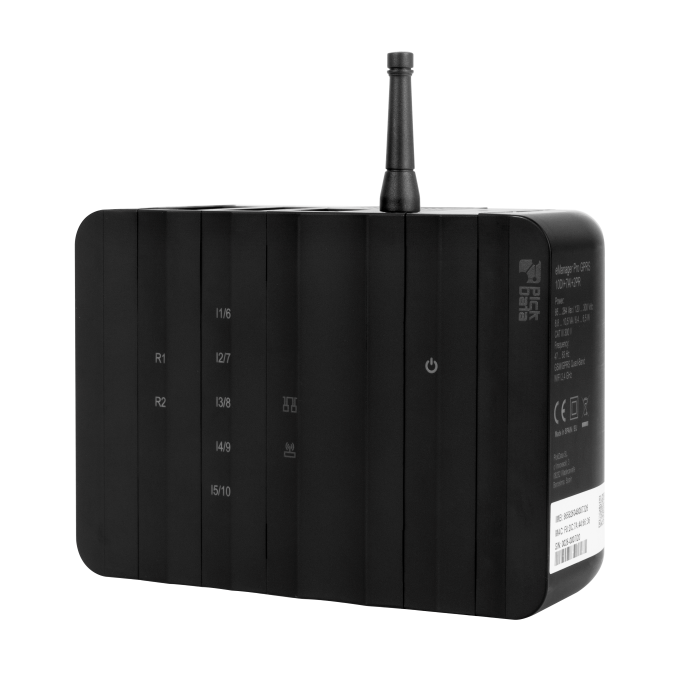

eManager ACTIO

eManager ACTIO Industrial Datalogger Input Output Digital Analog


The all-rounder industrial IoT datalogger



The power of eManager plus digital inputs, analog inputs and relays. All-in-one.

eManager ACTIO centralizes datalogging, communication, protocol integration, signals and actuators.



Let's find your eManager ACTIO...



eManager ACTIO 1072 Datalogger Input Output Smart IoT

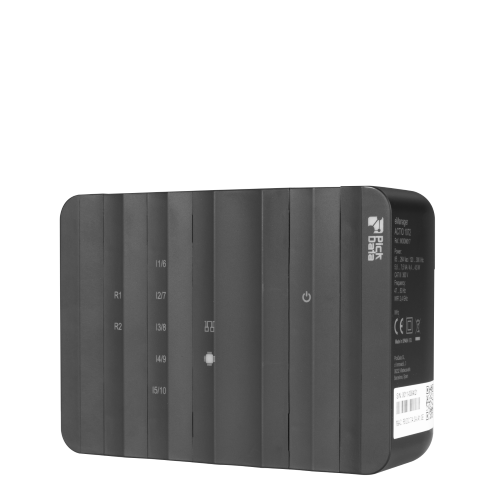

eManager ACTIO 1072



10 Digital inputs, 7 analog inputs and 2 relays

eManager GPRS ACTIO 1072 Datalogger Input Output Smart IoT

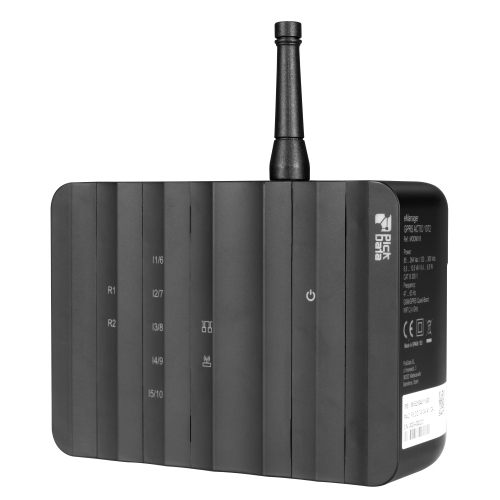

eManager GPRS ACTIO 1072



GPRS, 10 Digital inputs, 7 analog inputs and 2 relays

eManager Pro GPRS ACTIO 72 Datalogger Input Output Smart IoT

eManager GPRS ACTIO 72



GPRS, 7 analog inputs and 2 relays


eManager ACTIO 52 Datalogger Input Output Smart IoT

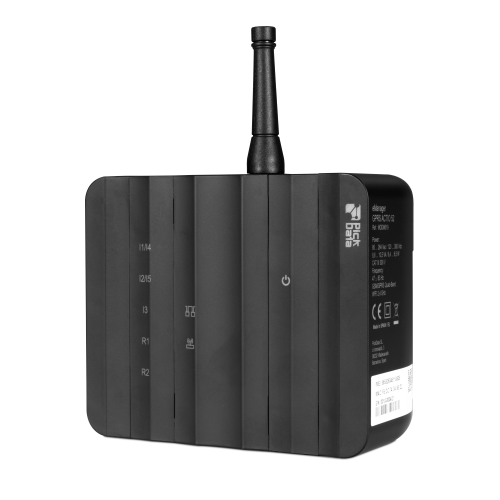

eManager GPRS ACTIO 52



GPRS, 5 Digital inputs and 2 relays

eManager ACTIO Industrial Datalogger Input Output Digital Analog

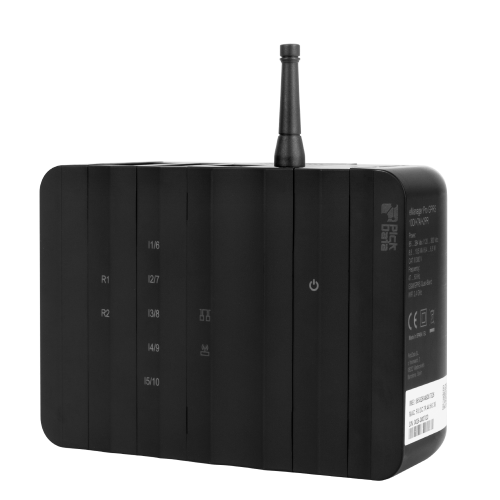

eManager Pro GPRS ACTIO 1072



Pro CPU, GPRS, 10 Digital inputs, 7 analog inputs and 2 relays

eManager ACTIO Industrial Datalogger Input Output Digital Analog

Create your own eManager ACTIO



Your combination, your customized datalogger





eManager eMOD Smart Datalogger IoT Node-RED





Industry-leading Node-RED integration



Easy communicate via MQTT, Modbus RTU/TCP, OPC-UA, BACNET and many more.

Manage each relay, digital & analog input in an intuitive and agile way with Node-RED custom nodes.

Huge performance benefits, powerful updates and non-stop progress.





eManager is an OEM industrial controller which is equipped with a high-performance control unit with a Linux Yocto embedded and Node-RED software integrated. The device includes RS-232/485 serial communications, an Ethernet 10/100 port and Wi-Fi communications. Two versions, eManager and eManager Pro, with different options of CPU clock, flash storage or RAM memory. Specifically, eManager ACTIO is an eManager product range which includes different models integrating Digital & Analogue Inputs & Outputs. It can be expanded with Energy metering, PT-100, Supercapacitor and many more modules.

eManager is equipped with a software platform designed for easily developing industrial and edge computing applications. With eManager you can smoothly develop your application with our multilanguage API which include the most popular programming language for IoT applications (C, C++, Python, Go, Java...). In addition, eManager fully integrates Node-RED which includes protocols such as Modbus, BACNET, MQTT, OPC-UA, together with easy communication with platforms like Amazon WBS, Microsoft Azure, Google Cloud and more.

If you want to learn more about how to work with eManager product range access to https://docs.pickdata.net





Hardware

  • eManager
    • ARM CORTEX-A7 700 Mhz
    • 256 MB DDR3 memory
    • 512 MB NAND flash memory
  • eManager Pro
    • ARM CORTEX-A7 800 Mhz
    • 512 MB DDR3 memory
    • 8 GB eMMC flash memory
  • GPRS, Digital & Analogue I/O, Energy metering and many more expansion modules
  • Wi-Fi and BT (optional)
  • RS-232/485 from 9600 to 115200 bps
  • Ethernet port 10/100 Mbps
  • Double-insulated class II
  • CAT III 300V
  • Standards UNE EN 61010-1, UNE-EN 61000-6-2, UNE-EN 61000-6-4
  • SMA female connector for external antenna
  • Manual reset
  • Direct input voltage 230 Vac
  • DIN Rail mounting
  • Enclosure box UL94 polycarbonate - self-extinguishing V0
  • CE Certified

Software

  • Linux Yocto integrated (other on request)
  • The eManager framework includes:
    • eMOD Libs: Our libraries to communicate with each module of the eManager
    • API: The API that you will use to communicate with the eMOD libs.
    • Toolkit: Complete set of software tools to easy develop your application including Node-RED, Edge X Foundry, public Modbus libraries, ...
    • SDK: Kit of software development tools for a specific platform including compiler, linker, ...



Devices

Datasheet eManager ACTIO 1072  English  Español

Datasheet eManager GPRS ACTIO 1072  English  Español

Datasheet eManager GPRS ACTIO 72  English  Español

Datasheet eManager GPRS ACTIO 52  English  Español

Datasheet eManager Pro GPRS ACTIO 1072  English  Español



Accesories

Antenna 2,2 dBi with 2 meter cable - Datasheet (ACCESSORY)  English  Español

Antenna IP67 4 dBi with 1 meter cable - Datasheet (ACCESSORY)  English  Español
